GFEVT1500-74ES高速熔斷器100A-800A 1500Vdc

[附件: Download]

Dimensions (mm)

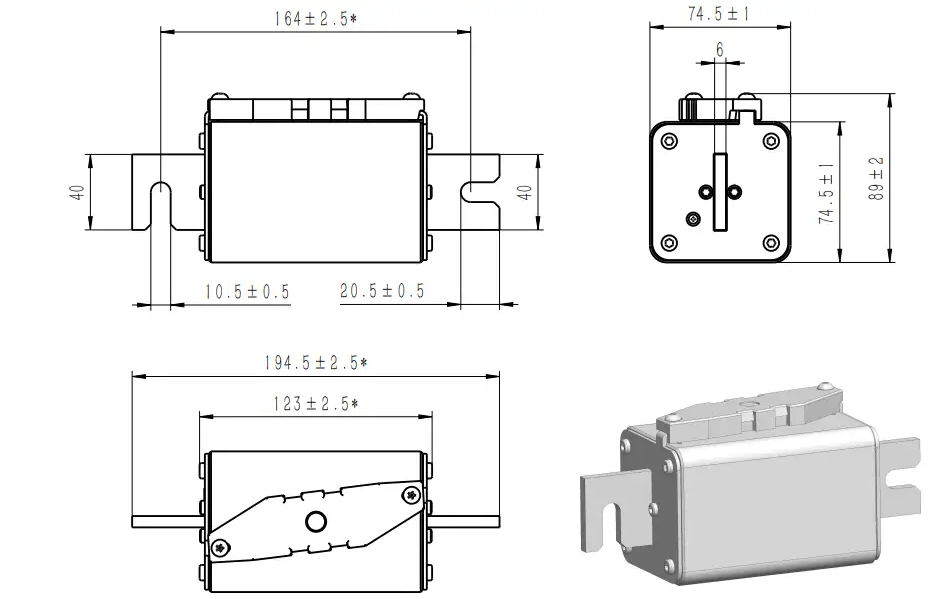

Din xxxU-74ES Dimensions

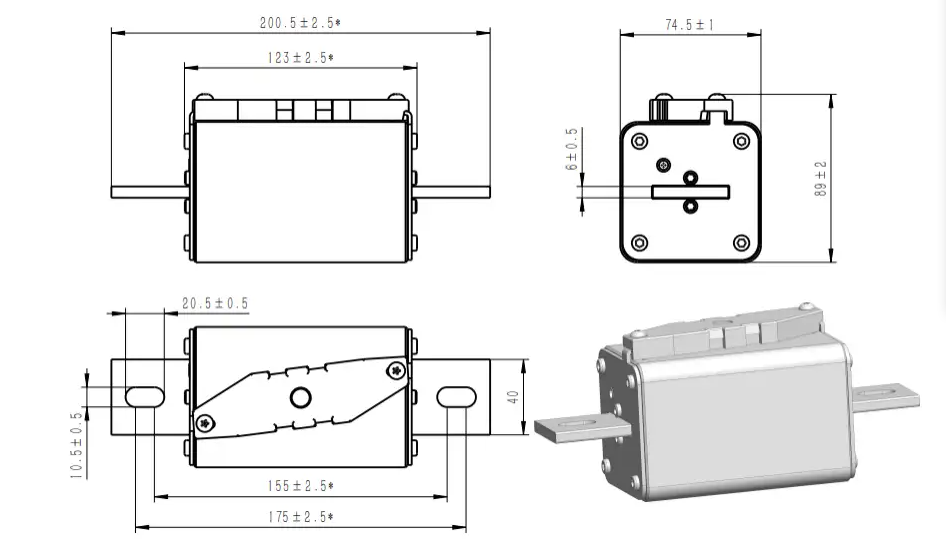

Bolted xxxB-74ES Dimensions

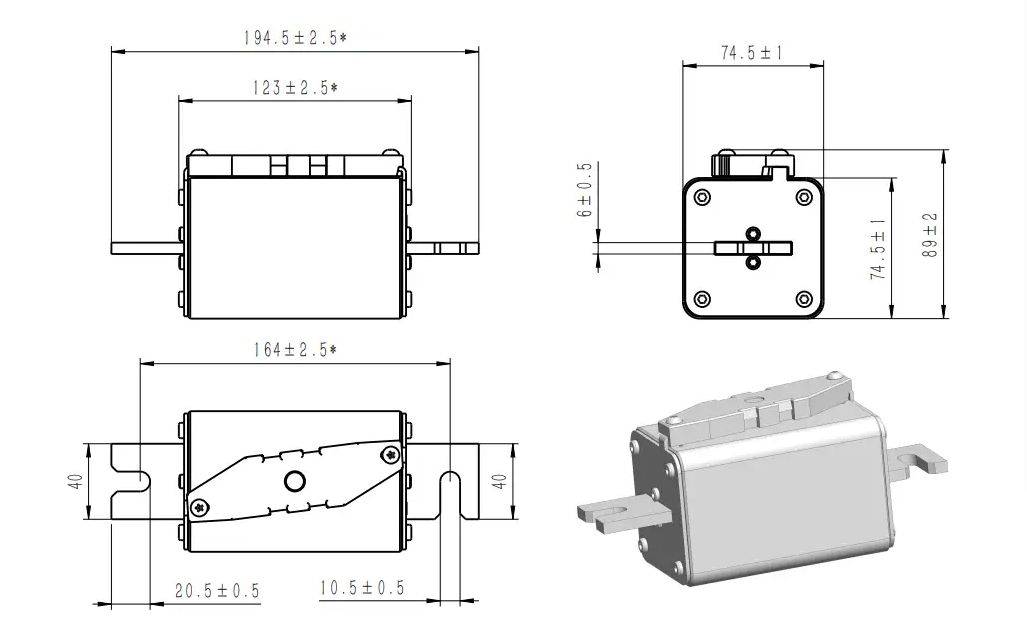

Customize xxxU-74ES Dimensions

Description

Design For Dc Applications
Excellent Dc Performance
Superior cycling capability
Low Watt Losses

Standards / Approvals

Refer To UL 248.1/UL 248.13
IEC 60269.1/IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components. Greater ampacity within sizing guidelines
Excellent power of resisting voltaic impingement and environment temperature tolerance,
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Bolted	GFEVT1500-100B-74ES	100A	1081	4399	45	57	●	●
	GFEVT1500-125B-74ES	125A	1645	7849	52	64	●	●
	GFEVT1500-160B-74ES	160A	3572	13160	69	85	●	●
	GFEVT1500-200B-74ES	200A	4888	22090	81	104	●	●
	GFEVT1500-250B-74ES	250A	9776	42300	93	114	●	●
	GFEVT1500-315B-74ES	315A	19864	71440	102	128	●	●
	GFEVT1500-350B-74ES	350A	27293	97435	111	140	●	●
	GFEVT1500-400B-74ES	400A	35980	126652	128	161	●	●
	GFEVT1500-450B-74ES	450A	51208	175802	140	177	●	●
	GFEVT1500-500B-74ES	500A	69286	236492	152	192	●	●
	GFEVT1500-550B-74ES	550A	86708	289098	165	209	●	●
	GFEVT1500-630B-74ES	630A	122580	398997	185	234	●	●
	GFEVT1500-700B-74ES	700A	169997	541567	199	257	●	●
	GFEVT1500-800B-74ES	800A	263998	814912	214	277	●	●

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Din	GFEVT1500-100U-74ES	100A	1081	4446	45	57	●	●
	GFEVT1500-125U-74ES	125A	1645	7933	52	64	●	●
	GFEVT1500-160U-74ES	160A	3572	13300	69	85	●	●
	GFEVT1500-200U-74ES	200A	4888	22325	81	104	●	●
	GFEVT1500-250U-74ES	250A	9776	42750	93	114	●	●
	GFEVT1500-315U-74ES	315A	19864	72200	102	128	●	●
	GFEVT1500-350U-74ES	350A	27293	98471	111	140	●	●
	GFEVT1500-400U-74ES	400A	35980	127999	128	161	●	●
	GFEVT1500-500U-74ES	500A	69286	239035	152	192	●	●
	GFEVT1500-630U-74ES	630A	122580	407578	185	234	●	●
	GFEVT1500-700U-74ES	700A	169997	553214	199	257	●	●
	GFEVT1500-800U-74ES	800A	263998	832437	214	277	●	●

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%	ROHS	REACH
Customize	GFEVT1500-100K-74ES	100A	1081	4446	45	57	●	●
	GFEVT1500-125K-74ES	125A	1645	7933	52	64	●	●
	GFEVT1500-160K-74ES	160A	3572	13300	69	85	●	●
	GFEVT1500-200K-74ES	200A	4888	22325	81	104	●	●
	GFEVT1500-250K-74ES	250A	9776	42750	93	114	●	●
	GFEVT1500-315K-74ES	315A	19864	72200	102	128	●	●
	GFEVT1500-350K-74ES	350A	27293	98471	111	140	●	●
	GFEVT1500-400K-74ES	400A	35980	127999	128	161	●	●
	GFEVT1500-500K-74ES	500A	69286	241578	152	192	●	●
	GFEVT1500-630K-74ES	630A	122580	407578	185	234	●	●
	GFEVT1500-700K-74ES	700A	169997	553214	199	257	●	●
	GFEVT1500-800K-74ES	800A	263998	832437	214	277	●	●
