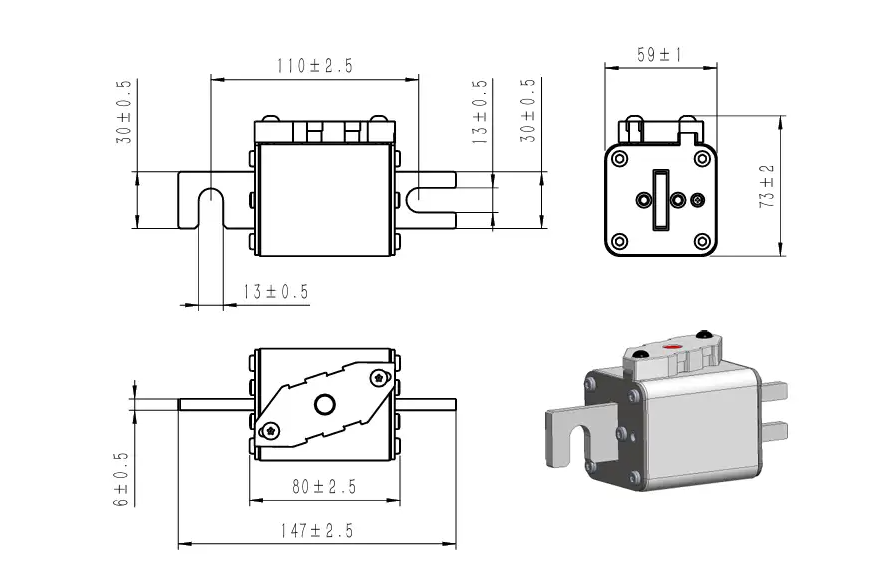

Dimensions (mm)

Customize xxxK-59EBolted xxxB-59E

Description

• Design For DC Applications
• Excellent DC Performance
• Low Watt Losses

Standards / Approvals

• Refer To UL 248.1 / UL 248.13
• IEC 60269.1 / IEC 60269.4
• Reach Declaration Available Upon Request
• RoHS Compliant

Features & Benefits

• Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
• Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
• Greater ampacity within sizing guidelines.
• Excellent power of resisting voltaic impingement and environmental temperature tolerance.
• Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
				A2s Melting	A2t Clearing	100%	ROHS	REACH
Bolted	GFEVT1000-100B-59E	100A	2#	1,320	8,680	75
	GFEVT1000-125B-59E	125A	2#	1,880	12,400	80
	GFEVT1000-160B-59E	160A	2#	2,690	17,710	85
	GFEVT1000-200B-59E	200A	2#	3,840	25,300	90
	GFEVT1000-250B-59E	250A	2#	5,490	36,150	98
	GFEVT1000-275B-59E	275A	2#	7,900	52,170	105
	GFEVT1000-315B-59E	315A	2#	10,900	72,850	113
	GFEVT1000-350B-59E	350A	2#	13,900	91,650	120
	GFEVT1000-400B-59E	400A	2#	19,450	131,600	128
	GFEVT1000-450B-59E	450A	2#	30,950	192,700	135
	GFEVT1000-500B-59E	500A	2#	43,680	267,900	143
	GFEVT1000-550B-59E	550A	2#	56,420	347,800	150
	GFEVT1000-630B-59E	630A	2#	104,650	540,500	180
	GFEVT1000-700B-59E	700A	2#	145,930	739,350	188
	GFEVT1000-800B-59E	800A	2#	223,440	1,160,000	195

Connect	Part No.	Fuse Amps	Size	Average @50KA/1000Vdc		Power Loss (W)	Approvals
				A2s Melting	A2t Clearing	100%	ROHS	REACH
Customize	GFEVT1000-100K-59E	100A	2#	1,320	8,680	75
	GFEVT1000-125K-59E	125A	2#	1,880	12,400	80
	GFEVT1000-160K-59E	160A	2#	2,690	17,710	85
	GFEVT1000-200K-59E	200A	2#	3,840	25,300	90
	GFEVT1000-250K-59E	250A	2#	5,490	36,150	98
	GFEVT1000-275K-59E	275A	2#	7,900	52,170	105
	GFEVT1000-315K-59E	315A	2#	10,900	72,850	113
	GFEVT1000-350K-59E	350A	2#	13,900	91,650	120
	GFEVT1000-400K-59E	400A	2#	19,450	131,600	128
	GFEVT1000-450K-59E	450A	2#	30,950	192,700	135
	GFEVT1000-500K-59E	500A	2#	43,680	267,900	143
	GFEVT1000-550K-59E	550A	2#	56,420	347,800	150
	GFEVT1000-630K-59E	630A	2#	104,650	540,500	180
	GFEVT1000-700K-59E	700A	2#	145,930	739,350	188
	GFEVT1000-800K-59E	800A	2#	223,440	1,160,000	195

• I2t 1000Vdc 50kA，T：＜5ms；DC allows the maximum voltage：1048V
